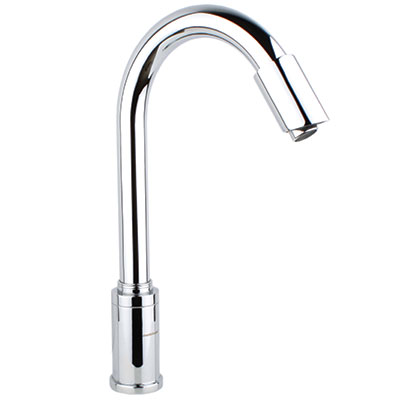

ATX-8203 Swan-neck Sensor Electronic Sensor tap

ATX-8203 Sensor tap

ATX-8203Tall swan-neck design sensor tap with integrated spout sensor

Product Info

  • Features
  • Technical Information
  • Dimension
  • Contents
  • Functions
  • Temperature Control
  • Remote Control

Tall and Elegant 'Goose' neck design sensor tap
Height: 380mm
Integrated spout sensor-eye
Intelligent 'auto-adjust' sensor distance
Single supply
Power: Mains/4XAA Alkaline batteries (up-to 2yr lifespan)
Hands free infrared activation
Fixed/360 degree swivel-neck design
Solid-brass outer shell construction
Finish: Chrome-plated
1x Flexible supply hose

Control box: Diameter of 'inlet' pipe: G1/2”
Control box: Diameter of 'outlet' pipe: G1/2”
Water pressure range: 0.75 (Min) - 7 Bar (Max)
Voltage: DC6V or AC220V-240V (6V Output)
Power consumption: =0.3mW
Sensing distance: 6-24cm
Respond time: 1 Second
Battery Consumption (DC): 4xAA alkaline batteries (up-to 2yr lifespan depending on level of usage)
Silent Consumption: 0.003mW
Environment Temperature: 1-45 C
Flow Rate: 6L/Per minute
Pipe Threading: British Standard Whitworth (BSW)
Noise Class: 1
Finish: Chrome-plated
Voltage: DC6V or AC220V-240V (6V Output)

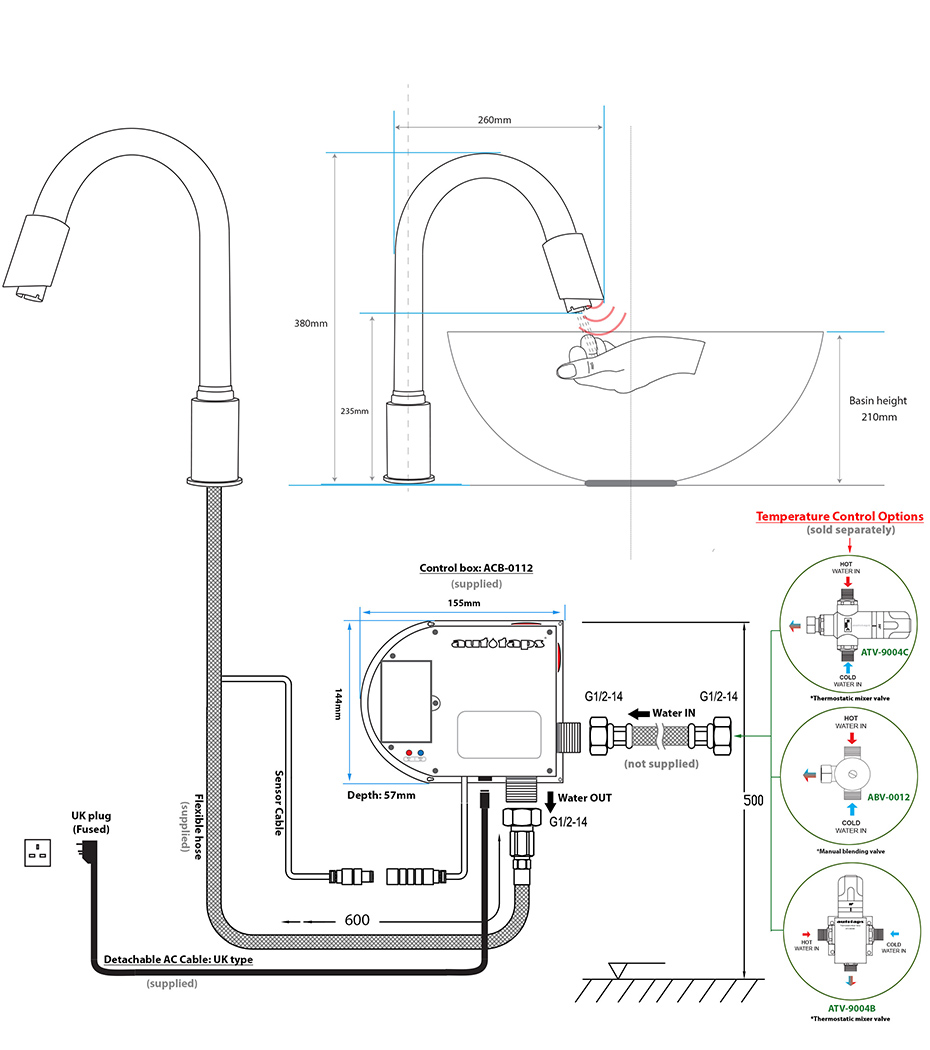

ATX-8203 Sensor tap Dimension

1x Sensor Tap
1x Control Box ***with 3-Pin plug (*battery compartment inside)
1x Flexible G1/2" *600mm Connection Hose
1x Transformer (*inside the control box)
Fittings and Screws

Nothing to display.

OPTION 1: ATV-9004C


ATV-9004C Control box ATV-9004C
This thermostat can be connected directly to the control box using its 1/2" female outlet connector. This method is usually the quickest way to setup installation.



OPTION 2: ATV-9004B



ATV-9004B Control box connection ATV-9004C
This thermostat has a 'wall-mounting' bracket that can be mounted on the wall and linked to the control box 'inlet' via a connecting pipe or a flexible hose (not supplied).

TIP:
You can run up-to three (3) sensor taps (maximum) with one thermostat. Water pressure of both hot and cold supplies must be at least 3 bar.






OPTION 3: ABV-0012



ABV-0112 and Control box connection ABV-0012
This is a manual blending valve, adjustable by hand only. There's no thermostatic mixing element inside. Any desired temperature can only be achieved 'manually' by turning the knob clockwise or anti-clockwise by hand.
