ATT-0044 Sensor Automatic tap with temperature control

ATT-0044 Curve neck design 'deck mounted' sensor tap with temperature control adjustment


Product Info

  • Features
  • Technical Information
  • Dimension
  • Contents
  • Functions
  • Temperature Control
  • Remote Control

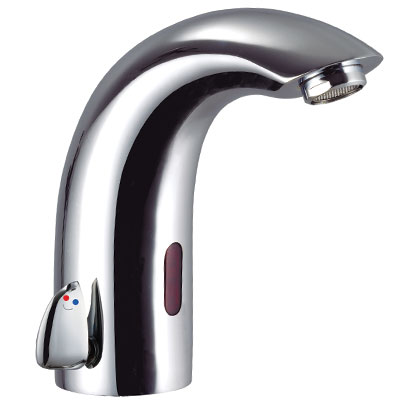

Curve-neck design sensor tap
Ceramic mixing valve
Manual blending valve built-in
Manual temperature control lever
Hygienic and upto 70% water conservation
Independent battery holder: 4XAA Alkaline batteries
Hands free and reliable infrared activation technology
Exquisite and stylish swan-neck design
Solid brass construction
2x flexible supply hoses

Diameter of 'inlet' flexible hoses: G1/2”
Water pressure range: 0.7 (Min) - 8 Bar (Max)
Voltage: AC/DC6V
Power consumption: =0.3MW
Sensing distance: 10-31cm
Respond time: 1 Second
Electricity Consumption: 4xAA alkaline batteries (2 years lifespan depending on level of usage)
Silent Consumption: 0.003W
Environment Temperature: 1-45 C
Flow Rate: 5L/Per minute
Pipe Threading: British Standard Whitworth (BSW)

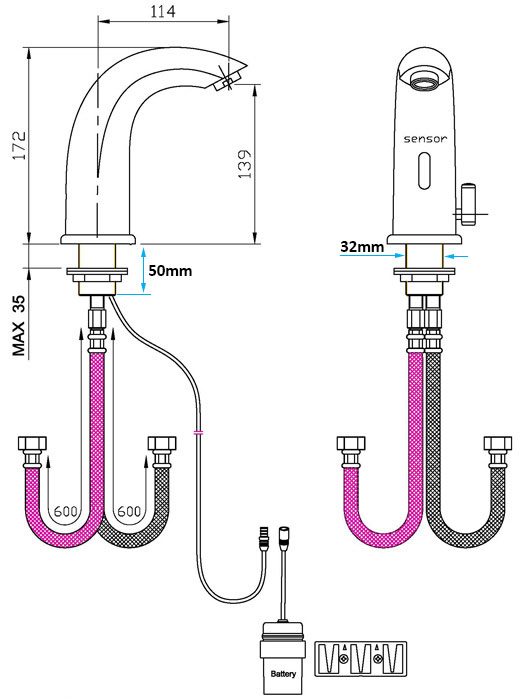

ATT-0044 Dimension

1x Sensor Tap
1x Battery Box
1x Trasformer
2x Flexible G1/2" *600mm Connection Hoses
Fittings and Screws
