AMA-5206T Tall '2-in-1' Automatic Sensor Activated tap

AMA-5206TShort curve-neck Design Sensor tap with temperature control

Product Info

  • Features
  • Technical Information
  • Dimension
  • Contents
  • Functions
  • Temperature Control
  • Remote Control

Stylish curve-neck design sensor tap
Tall swan-neck design sensor tap
Low-arc swivel-neck design
2-in-1 Integrative design
Automatic or Manual water control system
2-Pipeline Design
Double water supply feeds (Hot and Cold)
Power Options: Mains/4x AA Alkaline batteries (up-to 2yr lifespan)
External battery compartment
Low power indicator
Hands free infrared activation
Solid-brass outer-shell construction
Finish: Chrome-plated
2x Flexible supply hoses

Dia. of Water Inlet Pipe: G1/2" (DN15)
Operating Pressure 0.05~0.7 Mpa
Water pressure range: 0.7 (Min) - 8 Bar (Max)
Flow Rate of Manual Mode: 6L/Min (fitted with flow regulator aerator)
Flow Rate of Automatic Mode: 6L/Min (fitted with flow regulator aerator)
Max. Hot-water Temperature: 70C
Power consumption: =0.3mW
Respond time: 1 Second
Battery Power Consumption: 4xAA alkaline batteries (up-to 2 years lifespan depending on level of usage)
Silent Consumption: 0.003mW
Environment Temperature: 1-45 C
Pipe Threading: British Standard Whitworth (BSW)
Noise Class: 1
Finish: Chrome-plated
Voltage: DC6V or AC220V-240V (6V Output)

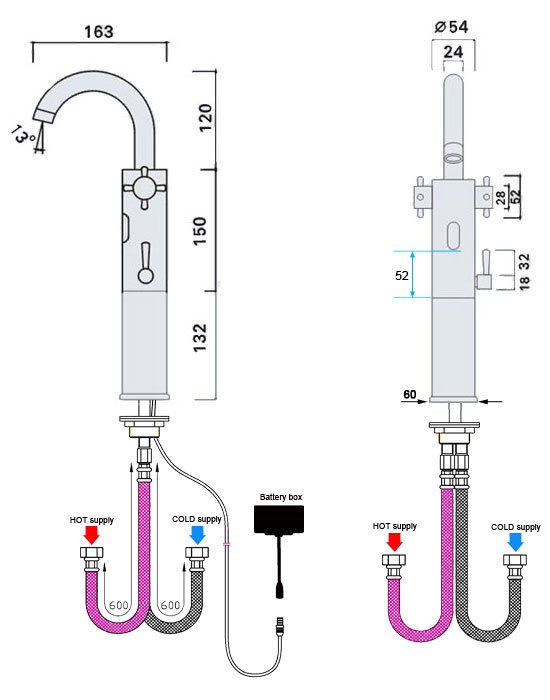

AMA-5206T Sensor tap Technical Dimension

1x Sensor Tap
1x Transformer (with 3-pin UK-type plug)
1x Battery Box
1x 1x Battery-box Bracket
2x Flexible G1/2" *500mm Connection Flexible Hoses
2x Non-return Valves With Pre-filter
1x Amphibious Screwdriver
Fittings and screws

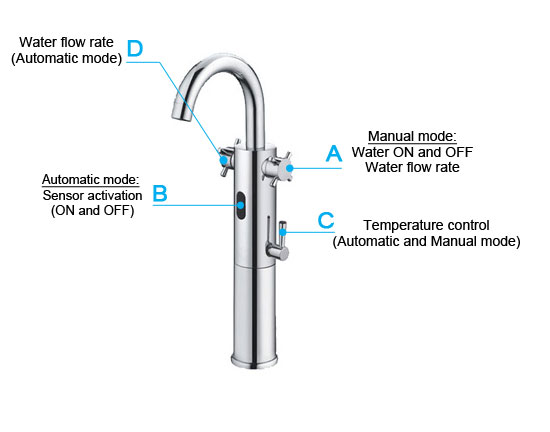

AMA-5206T Sensor Tap Features

Nothing to display

IRC-613 Remote Control




IRC-6.13 Sensor remote control

Sold separately

Flow time increase

FLUSH/RUN Water: Flow Time Increase
When this button is pressed once, it will increase water flush/flow time by ‘5 seconds’. Each key press represents 5 seconds ‘flow time’ increment.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 3 LED light flashes. Each key press increases water flow time by 5s. For example, press 1 time =5s, press 2 times= 10s, 3 times= 15s etc.

NOTE:
Each key press must be registered by sensor module first before setting another parameter. For example, if you want the tap to run for 10 seconds,  press this key once and let it register (which equals 5s) and press it again the second time to increase it from 5s to 10s and so on.

Flow time decrease

FLUSH/RUN Water: Flow Time Decrease
When this button is pressed once, it will decrease water flush/flow time by ‘5 seconds’. Each key press represents 5 seconds ‘flow time’ decrement.

HOW TO:
With remote control facing/pointing towards the sensor, press once, LED light flashes 3 times. Each key press will decreases water flow time by 5s. For example, press 1 time =-5s, press 2 times= -10s, 3 times= -15s etc.

NOTE:
Each key press must be registered by sensor module first before setting another parameter. For example, if you want the flow time to be decreased by 10 seconds,  press this key once and let it register (which equals -5s) and press it again the second time to decrease it from 10s to 5s and so on.

Sensor increase

Increase Sensor Distance
This button will increase the sensor distance by/between 2-5cm.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 3 LED light flashes. Each key press increases sensor proximity zone, and represents 2-5cm increment.

*Sensor distance range scope is around/between 7cm-35cm

Sensor decrease

Decrease Sensor Distance
This button will decrease the sensor proximity distance by/between 2-5cm.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 2 LED light flashes. Each key press increases sensor proximity zone, and represents 2-5cm increment.

*Sensor distance range scope is around/between 7cm-35cm

Auto Search button

Auto Search
This button allows the 'automatic' settings of the sensor proximity sensor range.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 5 LED light flashes. During these flashes, the sensor will auto-calibrate itself and adjust its infrared distance settings in accordance with environment.

This button can also be used to set the sensor distance manually.
For example, once this button is pressed, place hand/object at desired position/distance where you want sensor range to end and it will automatically calculate the distance from sensor module to hand/object.

Stand-by button

Standby
This button will put the sensor on standby or 'inactive' mode. This is particularly useful if the tap needs cleaning or simply trying to put the sensor tap 'out of action' during holiday period. When this mode is active, the sensor will not respond to any interaction with it until it's switched ON again.

HOW TO:
With remote control facing/pointing towards the sensor, press once, LED light comes on and stays on for 2-3 seconds and then goes off, standby mode is now active.

To disable, press once, LED light comes on and stays on for 2-3 seconds ‘twice’ and then goes off. Standby mode is now disabled.
